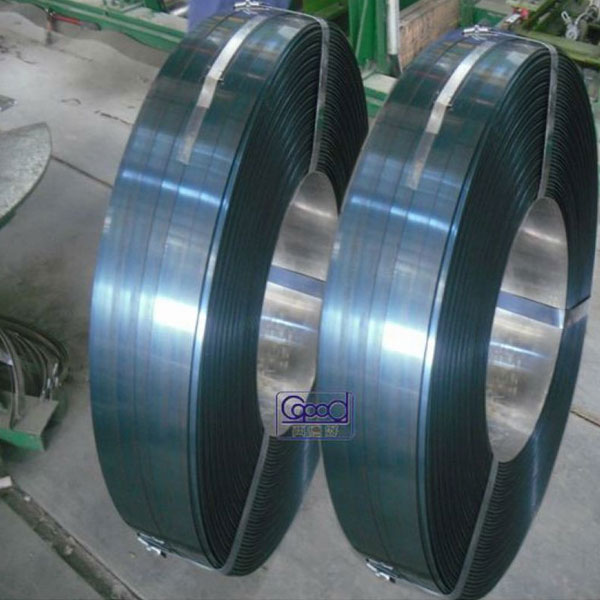

High Tensile Packing Steel Strapping
Our high tensile steel strapping ,which are manufactured from special cold rolled steel and are fully heat-treated to get high tensile strength above 930Mpa and elongation over6%.the strapping have the great advantage of excellent physical properties,maximum safety,shock resistance,etc.and that are produced to meet various heavy duty applications
Steel strapping with high strength specifications
Physical Properties
Thickness x Width
| thickness(mm) | width(mm) |
|
0.40 |
16 |
| 0.50 | 16,19 |
| 0.60 | 16,19 |
| 0.70 | 19 |
| 0.80 | 19,25.4,31.75,32 |
| 0.90 | 19,25.4,31.75,32,40 |
| 1.0 | 19,25.4,31.75,32,40 |
| 1.2 | 31.75,32,40 |
|
thickness toleance 0.40~0.60+/-0.002mm 0.70~1.20+/-0.003mm |
width tolearance 16-40mm+/-0.1mm |
Finish
Blue tempered + Waxed
Painted + Waxed, such as black, brown, green, etc
Zinc coated + waxed
Coil Dimension
Coil I.D: 200mm, 300mm, 406mm
Coil O.D (max): 1000mm
| Coil winding | Coil face | Coil weight |
| Ribbon wound |
16mm,19mm, 25.4mm,31.75mm, 32mm,40mm |
45-50kgs |
| Oscillated wound | 63.5mm | 50kgs |
| Jumbo wound | 190mm | 200-400kgs |

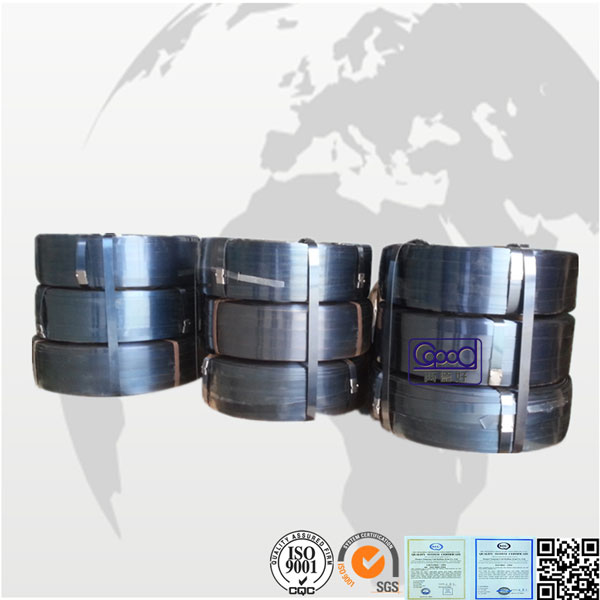

Packing:
Each bundle is packed with water proof paper and put onto
wooden pallet or iron pallet
Note
sizes, breaking load min, finish, coiling type, coil I.D, coil O.D, can be made accord. to customers`s requirement
