rolling shutter door spring steel ck67



rolling shutter door spring steel ck67


GuangWei Youliang is one of the biggest exporter for rolling shutter spring material in China. We are the well known and reputalbe maerial for rolling shutter door spring.

Each production's step is performed in the company to garrantee best flexibility and strictly quality control.

We have our owncold rolled facilities, firstrate crud materials purchaed from ISO certificated enterprise to guarantee superior quality.

All processes are done with our skillful employees and morden facility to assures best performance in surface  finishing, flatness and constanc of mechanical poperies.

Each coil before packing has been checked by width, thciness, hardness, straightness, bend-ability and elasticity.



We use the best raw material, precision cold rolling process, precise sltting pocess, de-burring of edges, and constant hardening and tempering process to assure our material with close tolerance in shape and mechanical properties.

  • Product Description
rolling shutter door spring steel ck67


HARDENED AND TEMPERED STEEL STRIP FOR ROLLING SHUTTERS


appliations:  roller shutter steel door, garage door, roller shutter metal door

material:      C67S, c75s(SAE1070,SAE1075)

surface:       polish blue/blue

edge:           rounded

hardness:    43-49hrc

STEEL SPRINGS AVERAGE DIMENSION(mm)

60x1.60    60x1.50    65x1.20    60x1.0
80x1.40    50x1.50    60x1.20    55x1.0
65x1.40    45x1.50    55x1.20    50x1.0
60x1.40    60x1.30    50x1.20    45x1.0
55x1.40    55x1.30    45x1.20    40x1.0
50x1.40    50x1.30    40x1.20    30x1.0
45x1.40    45x1.30    35x1.20
40x1.40    40x1.30

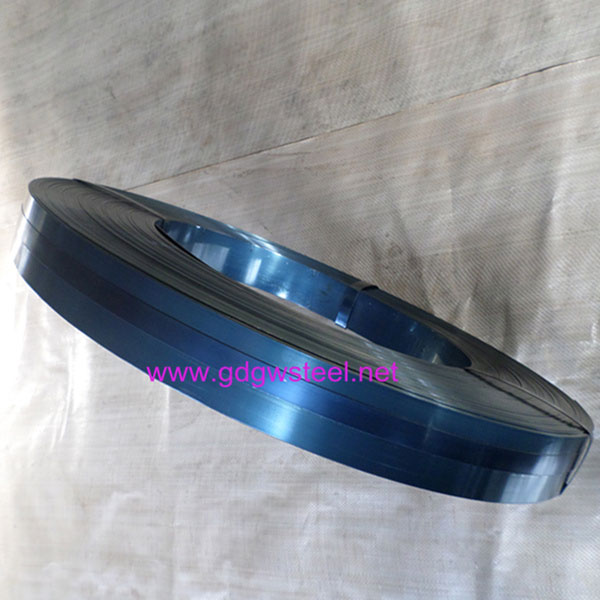

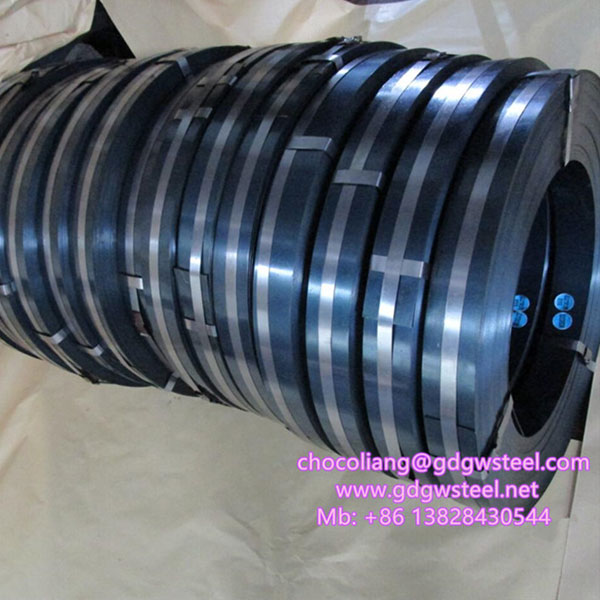

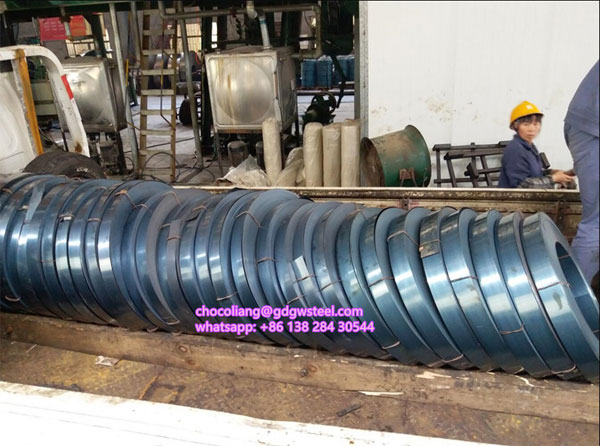

The following production and delivery pictures for your refrenced,



For more product's informations pls contact with us such as PRICE, PRODUCTION PICTURES, DELIVERY PICTURES, chocoliang@gdgwsteel.com

We guarantee our supplied steel strip 3000cycles up and down per year.

Please fill in the Information below or email us at Emial:chocoliang@gdgwsteel.com Skype:chocoliang.1
