High Tensile Packing Steel Strapping

High Tensile Packing Steel Strapping

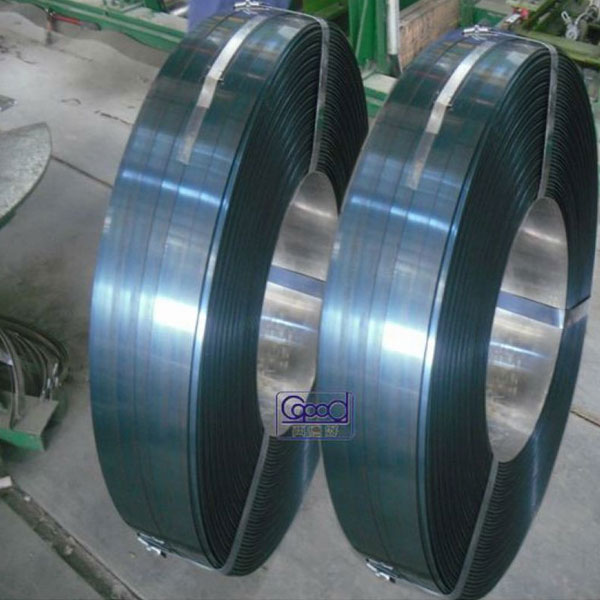

Our high tensile steel strapping ,which are manufactured from special cold rolled steel and are fully heat-treated to get high tensile strength above 930Mpa and elongation over6%.the strapping have the great advantage of excellent physical properties,maximum safety,shock resistance,etc.and that are produced to meet various heavy duty applications

  • Product Description

High Tensile Packing Steel Strapping

Steel strapping with high strength specifications

Physical Properties



Thickness x Width

thickness(mm) width(mm)

0.40

16
0.50 16,19
0.60 16,19
0.70 19
0.80 19,25.4,31.75,32
0.90 19,25.4,31.75,32,40
1.0 19,25.4,31.75,32,40
1.2 31.75,32,40

thickness toleance

 0.40~0.60+/-0.002mm

      0.70~1.20+/-0.003mm

width tolearance

16-40mm+/-0.1mm



Finish

Blue tempered + Waxed

Painted + Waxed, such as black, brown, green, etc

Zinc coated + waxed





Coil Dimension

Coil I.D: 200mm, 300mm, 406mm

Coil O.D (max): 1000mm



Coil winding    Coil face  Coil weight
Ribbon wound

16mm,19mm,

25.4mm,31.75mm,

32mm,40mm

45-50kgs
Oscillated wound 63.5mm 50kgs
Jumbo wound 190mm 200-400kgs

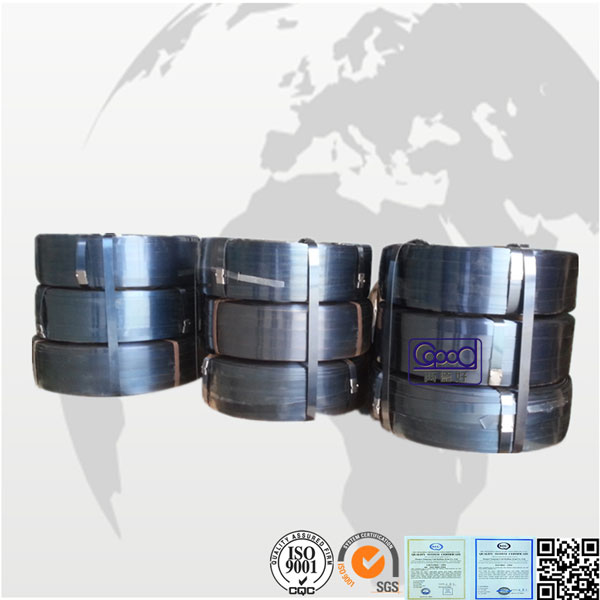

Packing:

Each bundle is packed with water proof paper and put onto

wooden pallet or iron pallet



Application

steel industry(steel coil, steel sheet, steel tube, steel bar)

plywood packing, timeber packing, brick packing

cotton, wool, jute, glass, oil tank

other heavy duty products etc



Note

sizes, breaking load min, finish, coiling type, coil I.D, coil O.D, can be made accord. to customers`s requirement.
